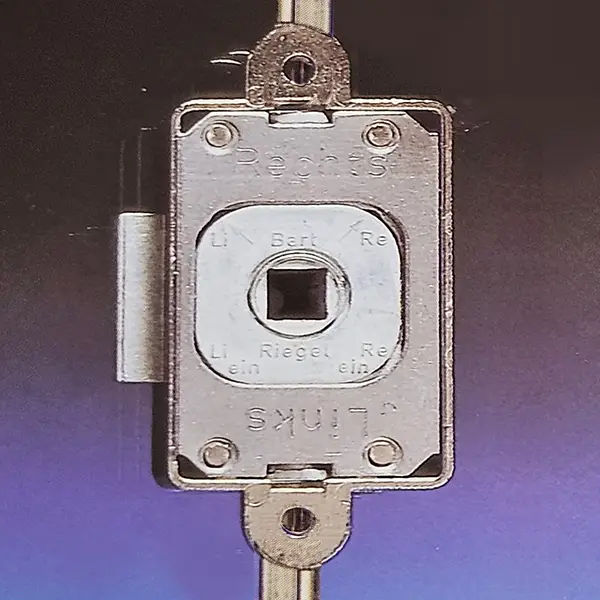

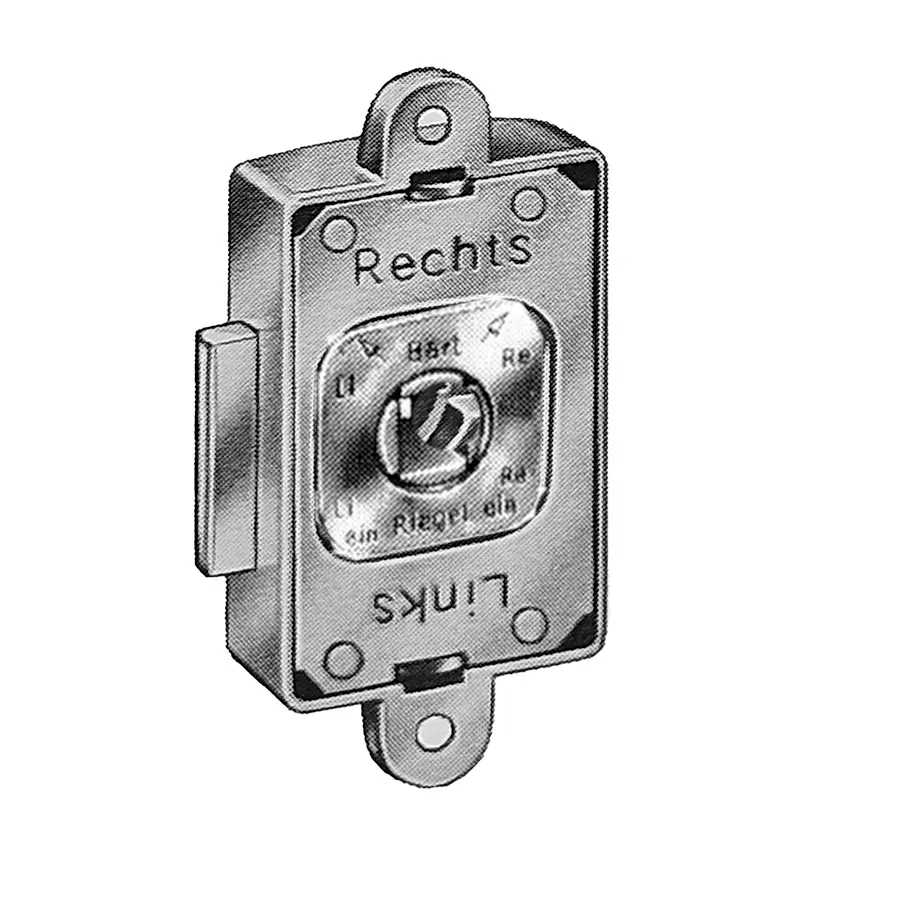

rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock
rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock - Image 2
rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock - Image 3
rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock - Image 4
rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock - Image 5
rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock - Image 6

rim lock 20 mm backset with follower for 7x7mm spindle. 3 point lock

Part #: 22.0201 Categories: ,

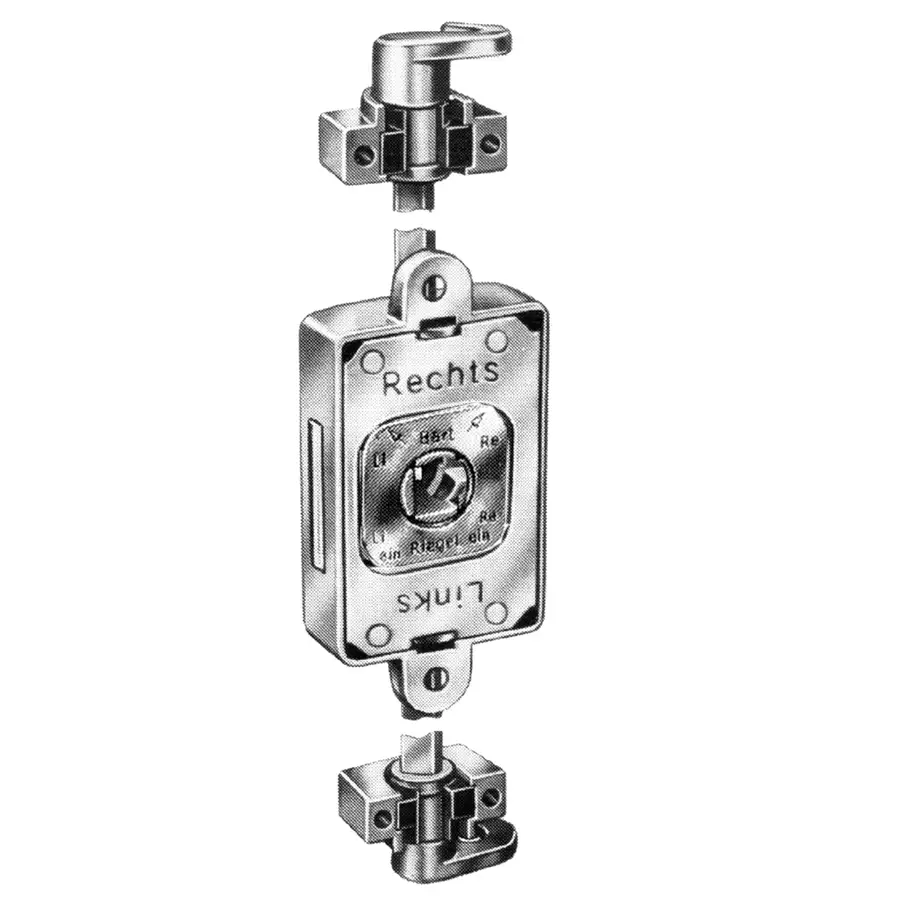

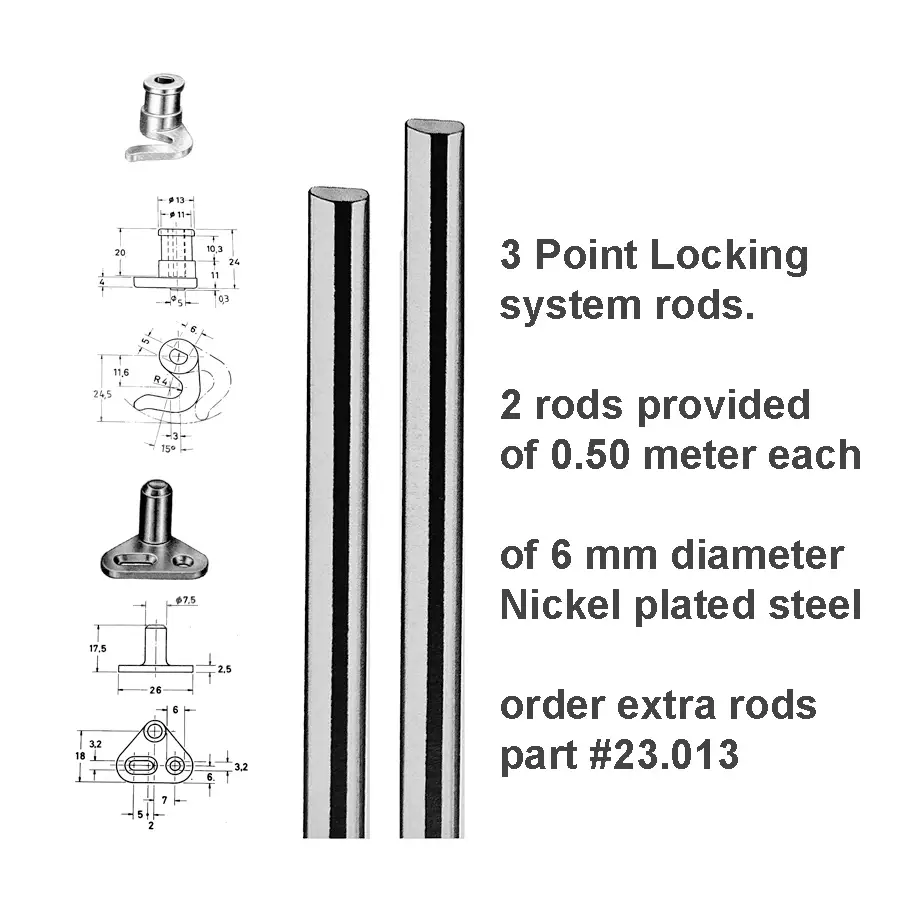

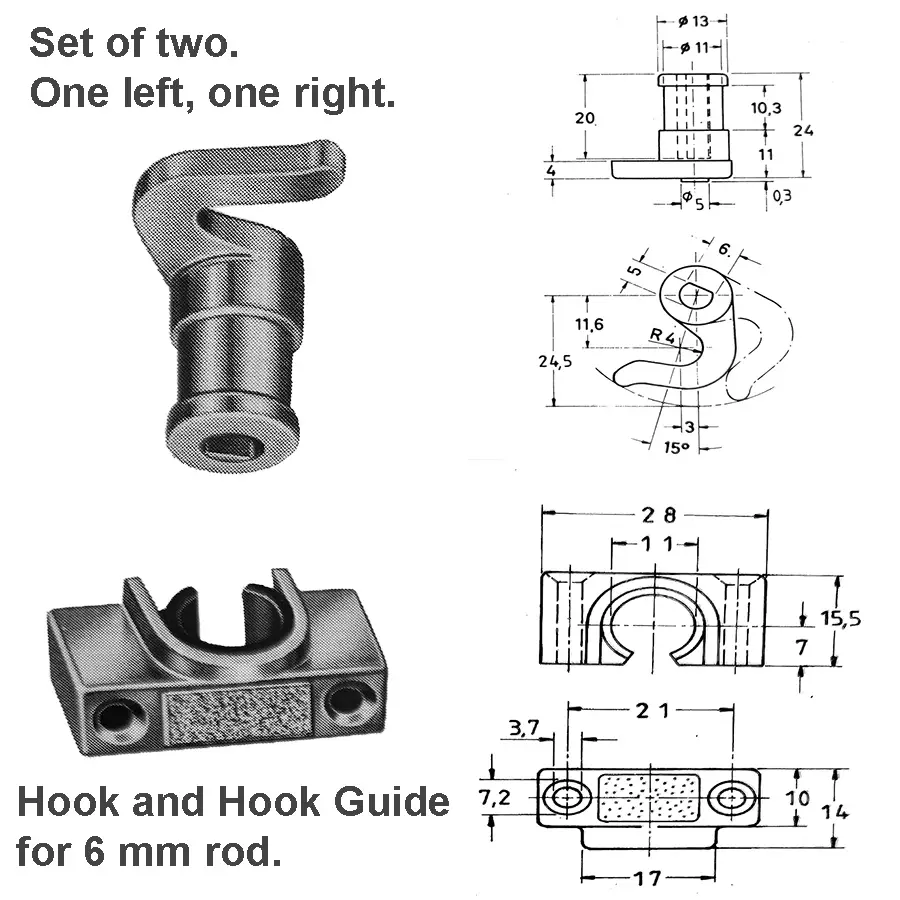

Steel nickel plated rim lock with 20 mm or 1 3/16 inch backset with 7×7 mm follower #22.516 with a 3 point locking function by means of turning rods and hooks and catch.. By flipping the follower before inserting the 90 degree turn is either clockwise or anticlockwise. Or – the turn will be to the left or to the right. Inch sizes approximate. Standard Knob: #22.553 and #22.551 with locking function are available from stock. Sets are interior grade, not marine grade

Description

Steel nickel plated rim lock with 20 mm or 1 3/16 inch backset with 7×7 mm follower #22.516 with a 3 point locking function by means of turning rods and hooks and catch.. By flipping the follower before inserting the 90 degree turn is either clockwise or anticlockwise. Or – the turn will be to the left or to the right. Inch sizes approximate. Standard Knob: #22.553 and #22.551 with locking function are available from stock. Sets are interior grade, not marine grade
