SET Push-Pull mechanism 25 mm backset with button and and Thick Wall ring + installation kit

Part #: 25.6253 Categories: ,

$109.20

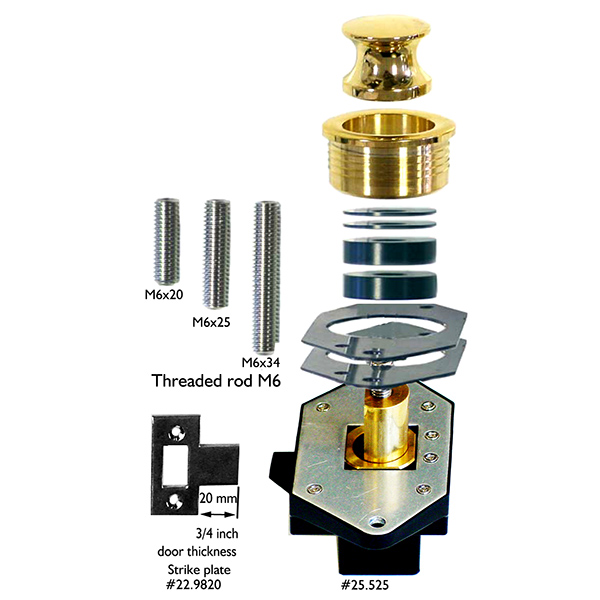

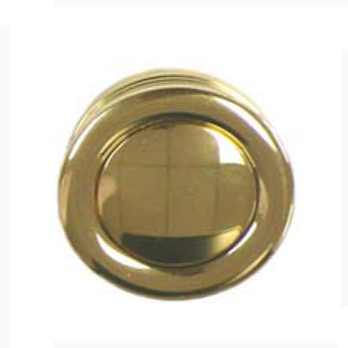

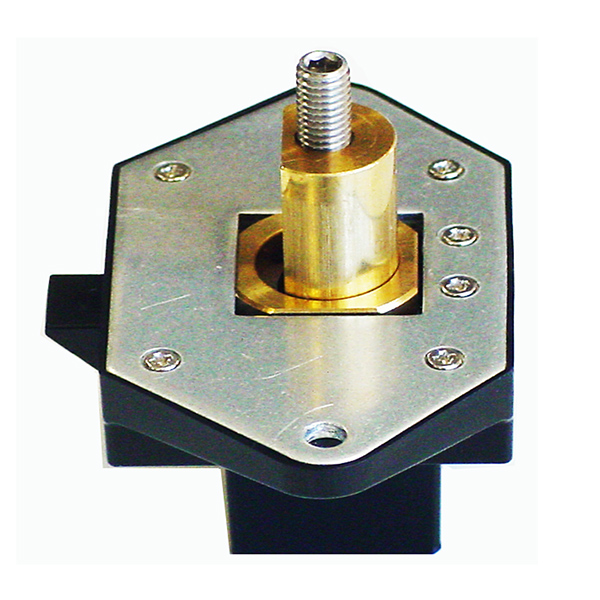

Polished Brass Lacquered Convex Button and Curved Ring, Mechanism and Strike and Installation Kit allowing Perfect installation with door thickness from 3/4 inch to 1 1/4 inch. Drill hole 1 3/16 inch for ring. All dimensions are approximate.

View Catalog PDF

Description

Polished Brass Lacquered Convex Button and Curved Ring, Mechanism and Strike and Installation Kit allowing Perfect installation with door thickness from 3/4 inch to 1 1/4 inch. Drill hole 1 3/16 inch for ring. All dimensions are approximate.
