rim lock 30 mm backset with follower for 7x7mm spindle and 3 point lock
rim lock 30 mm backset with follower for 7x7mm spindle and 3 point lock - Image 2
rim lock 30 mm backset with follower for 7x7mm spindle and 3 point lock - Image 3

rim lock 30 mm backset with follower for 7x7mm spindle and 3 point lock

Part #: 22.0301 Categories: ,

$158.52

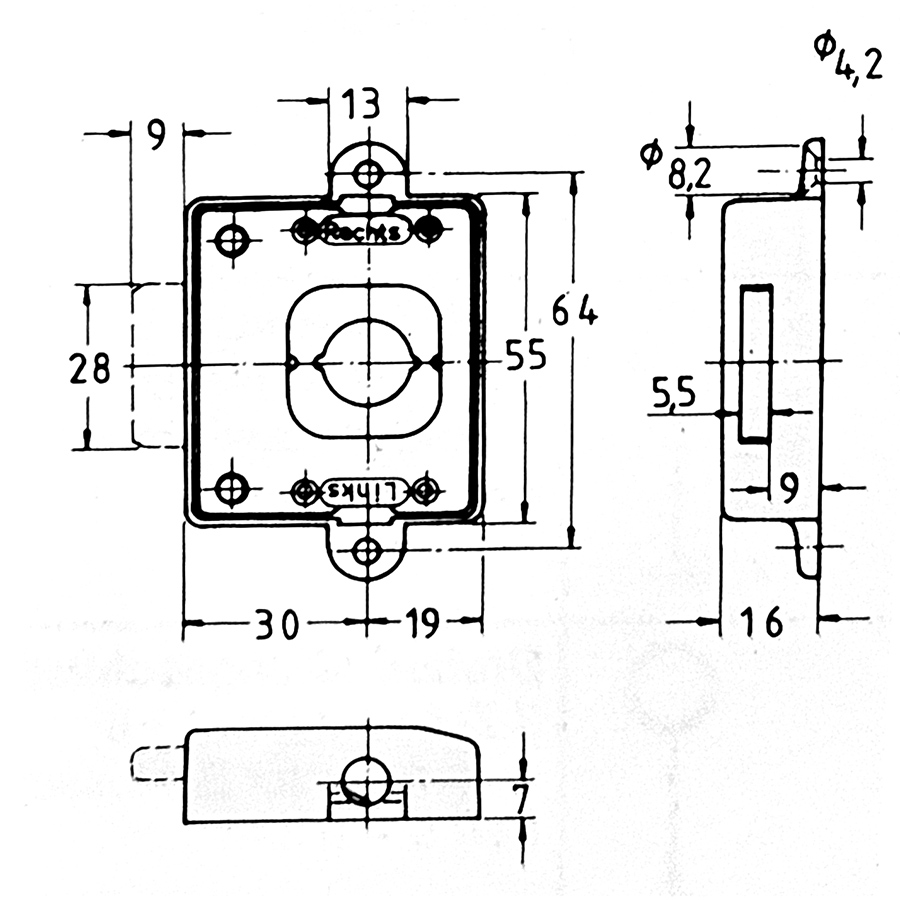

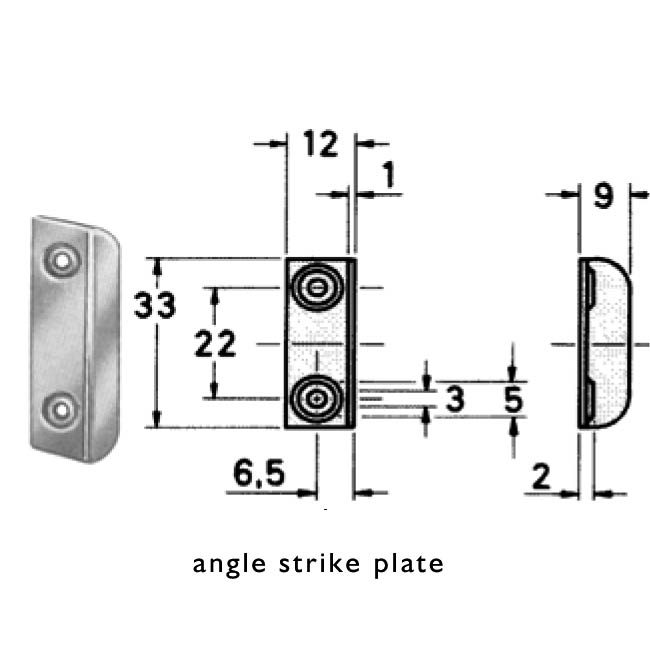

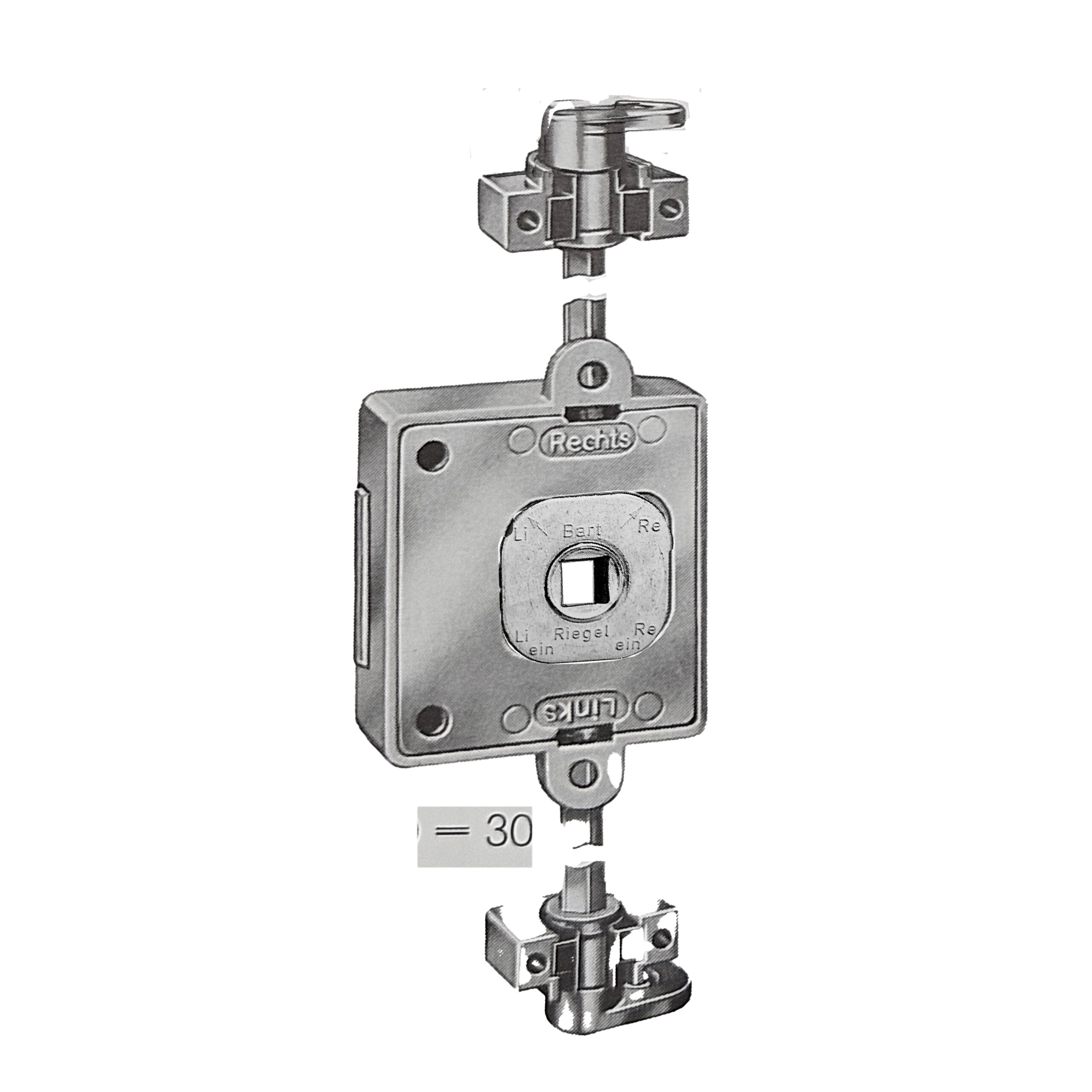

3 point Steel nickel plated rim lock with 30 mm or 1 3/16 inch backset with 7×7 mm follower #22.5 16. By flipping the follower before inserting the 90 degree turn is either clockwise or anticlockwise. Or – the turn will be to the left or to the right. All sizes approximate. Angle strike plate included.

Description

3 point Steel nickel plated rim lock with 30 mm or 1 3/16 inch backset with 7×7 mm follower #22.5 16. By flipping the follower before inserting the 90 degree turn is either clockwise or anticlockwise. Or – the turn will be to the left or to the right. All sizes approximate. Angle strike plate included.
