Entry Mortise Lock 50 mm Backset for Framed Doors
Entry Mortise Lock 50 mm Backset for Framed Doors - Image 2
Entry Mortise Lock 50 mm Backset for Framed Doors - Image 3
Entry Mortise Lock 50 mm Backset for Framed Doors - Image 4
Entry Mortise Lock 50 mm Backset for Framed Doors - Image 5
Entry Mortise Lock 50 mm Backset for Framed Doors - Image 6

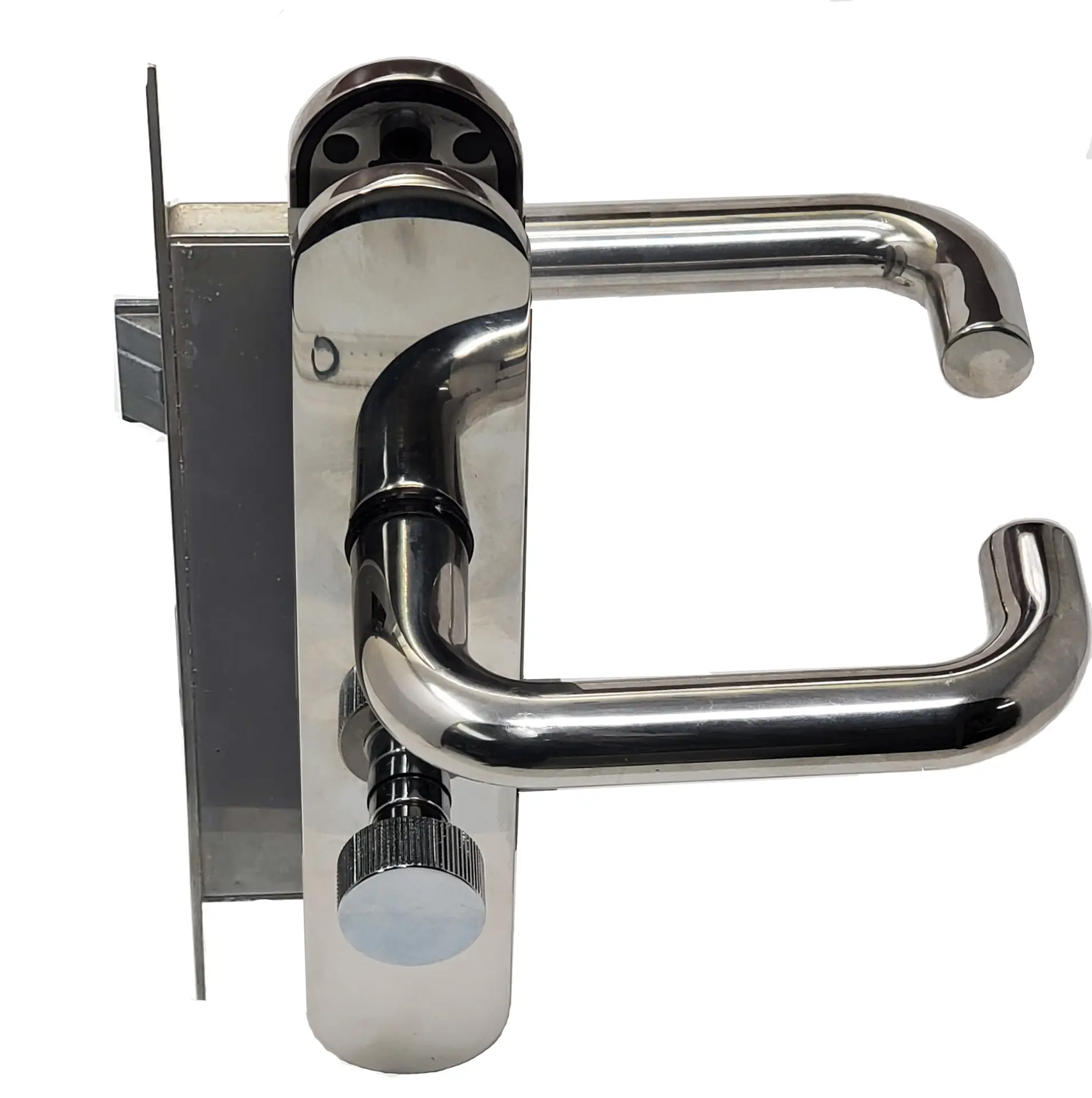

Entry Mortise Lock 50 mm Backset for Framed Doors

Part #: 19.83Z50.308 Categories: ,

$1,270.02

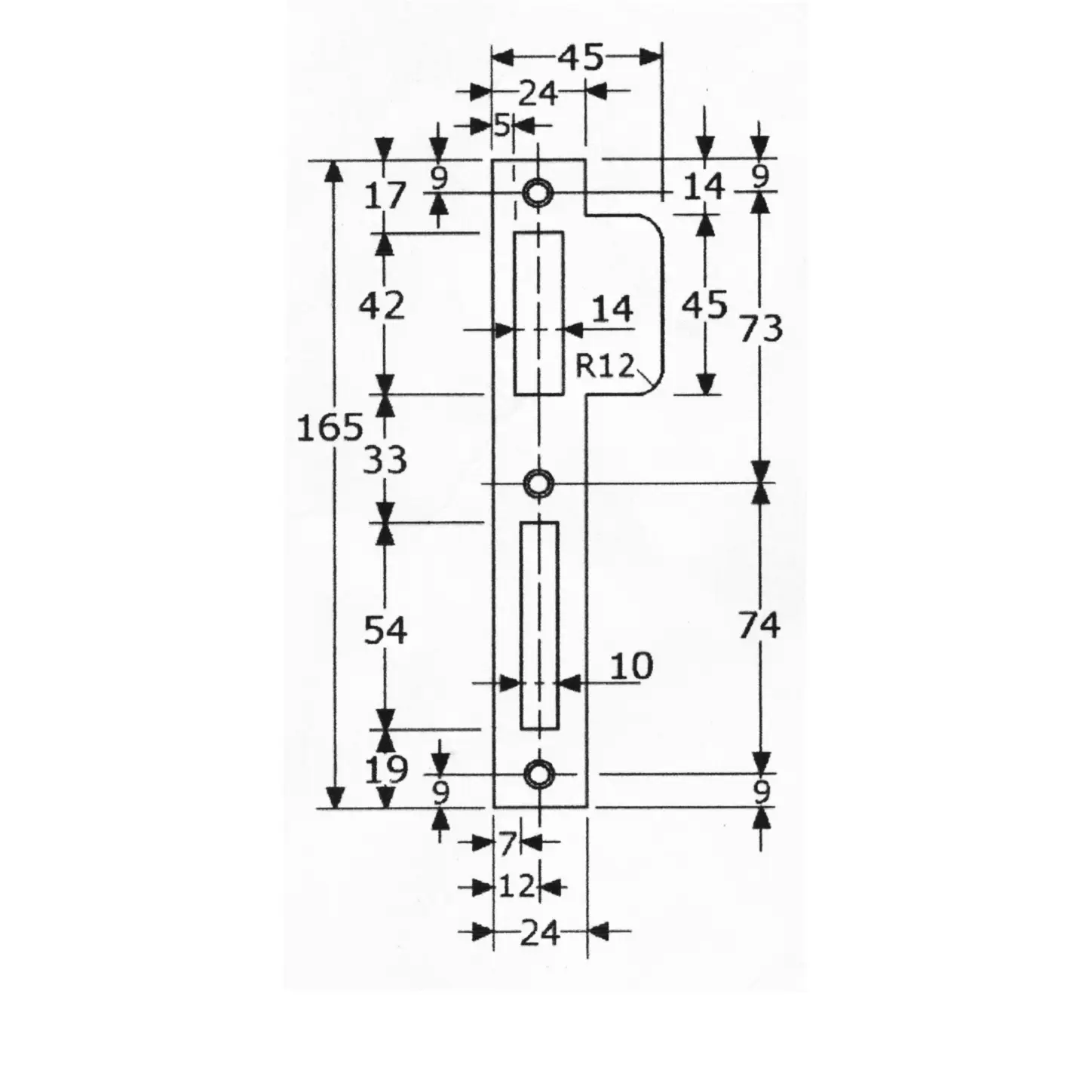

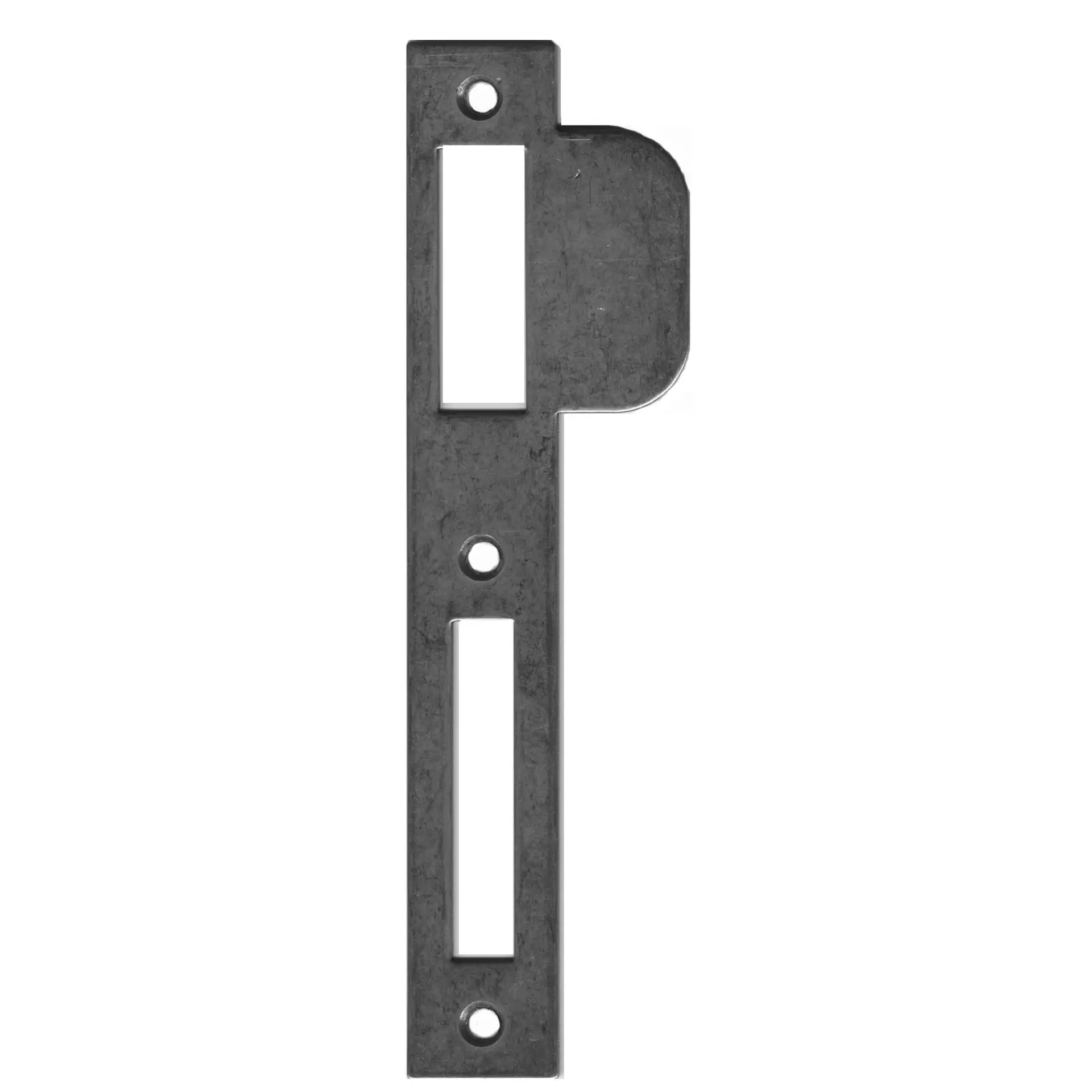

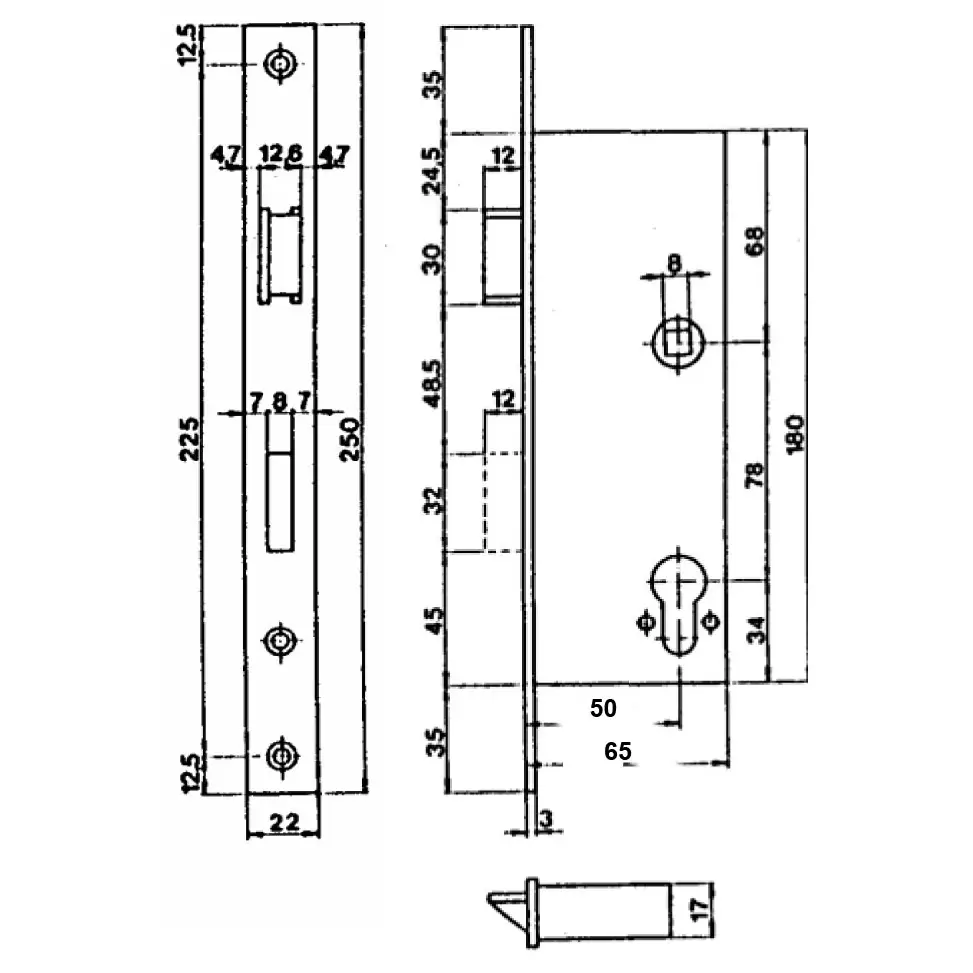

Select Left or Right from Attached Drawing. Marine Grade Entry Mortise Lockset for Aluminum Framed Doors and Wooden Doors. 50 mm Backset or 2". Polished Stainless Steel. Strike plate and Keyway/thumb-turn with 3 keys included. Minimum Door Thickness 1.5". Minimum Stile 65 mm wide 2.5 inch (wood). Please See Preview Catalog for Minimum Build in Dimensions and Sizes. All sizes approximate.

View Catalog PDF

Description

Select Left or Right from Attached Drawing. Marine Grade Entry Mortise Lockset for Aluminum Framed Doors and Wooden Doors. 50 mm Backset or 2". Polished Stainless Steel. Strike plate and Keyway/thumb-turn with 3 keys included. Minimum Door Thickness 1.5". Minimum Stile 65 mm wide 2.5 inch (wood). Please See Preview Catalog for Minimum Build in Dimensions and Sizes. All sizes approximate.
